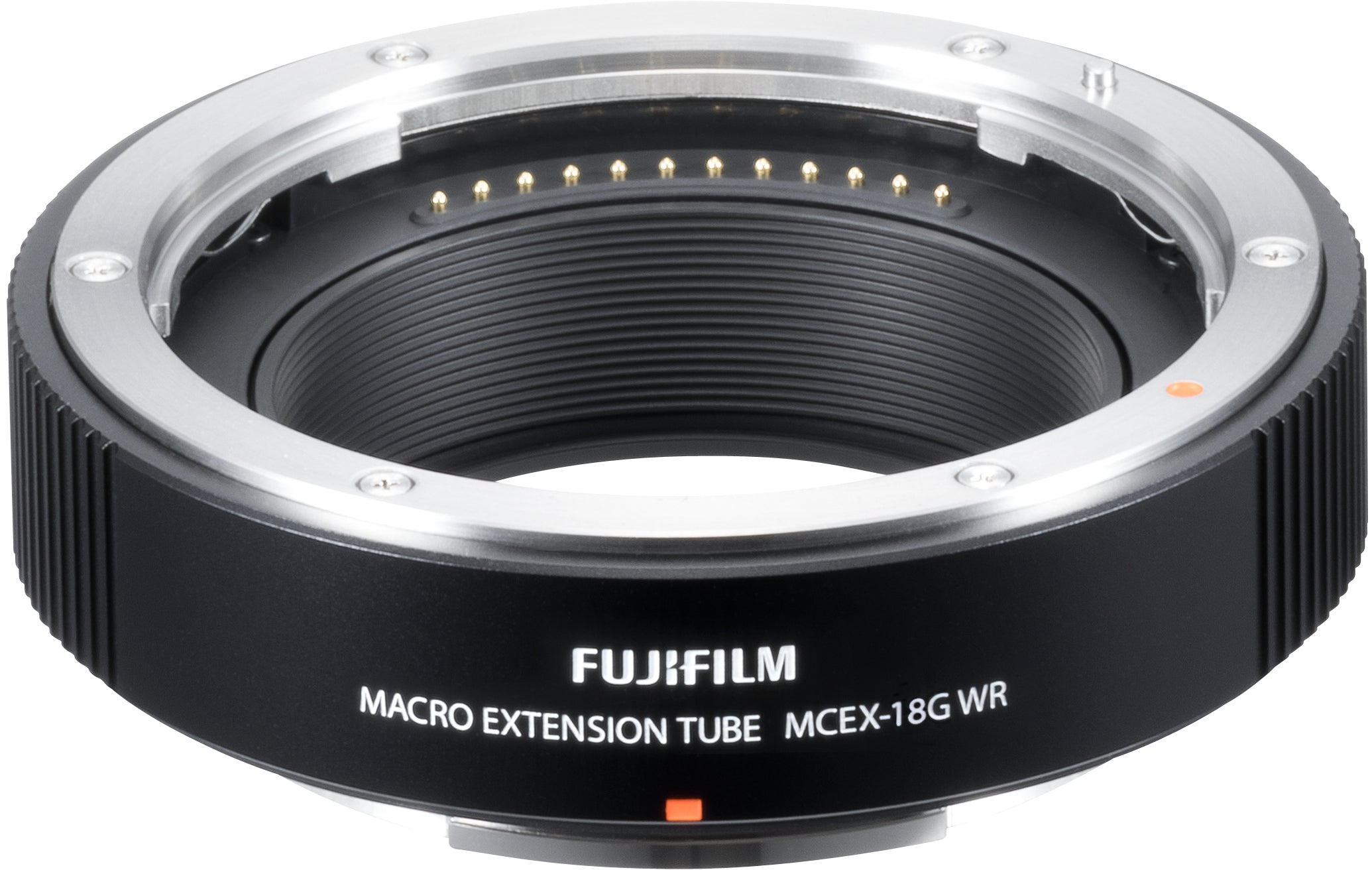

MCEX-18G WR and MCEX-45G WR expand the range of macro photography. Connecting the macro extension tubes to any GF lens allows macro photographs to be taken at a higher magnification ratio. Depending on the magnification ratio required, the photographer can select either the 18mm or 45mm tube. In particular, connecting the GF120mmF4 R LM OIS WR Macro (half-macro) and the MCEX-45G makes it possible to take photographs with life size 1:1 macro.
with GF45mmF2.8 R WR
- Maximum Magnification
- 1.13
GF45mmF2.8 R WR
- Working Distance
- 40mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 201mm
Distance from the image sensor to the subject
with GF63mmF2.8 R WR
- Maximum Magnification
- 0.88
GF63mmF2.8 R WR
- Working Distance
- 105mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 249mm
Distance from the image sensor to the subject
with GF110mmF2 R LM WR
- Maximum Magnification
- 0.59
- Working Distance
- 274mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 473mm
Distance from the image sensor to the subject
with GF120mmF4 R LM OIS WR Macro
- Maximum Magnification
- 1.04
- Working Distance
- 187mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 412mm
Distance from the image sensor to the subject
with GF250mmF4 R LM OIS WR
- Maximum Magnification
- 0.44
- Working Distance
- 697mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- 973mm
Distance from the image sensor to the subject
with GF32-64mmF4 R LM WR
- Maximum Magnification
- Wide: 1.52
Tele: 0.91
- Working Distance
- Wide: 0
Tele: 22mm
Distance from the top of the lens barrel to the subject
- Shortest Shooting Distance
- Wide: 189mm
Tele: 240mm
Distance from the image sensor to the subject
Dimensions and Weight
- Dimensions
- 3.22 x .1.75" / 82mm x 45mm
- Weight
- 8.64 oz / 245g
