The XF23mmF2 R WR is a wide-angle lens with advanced image resolution, capable of drawing out the full performance of Fujifilm's proprietary X-Trans CMOS sensor. It has a similar size and design flair of the existing XF35mmF2 R WR, to make up a stylish collection of compact lenses. The inner-focus AF system uses a stepping motor* to drive the focusing group of lens elements for silent and fast autofocus.
The metal exterior gives a sense of premium quality and robustness, and the aperture ring and focus ring have been designed for optimum operability. The lens is also weather and dust resistant and operates at temperatures as low as -10°C, making it an ideal choice for outdoor photography.
Advanced image quality
The lens consists of ten elements in six groups, including two aspherical elements. The optimum positioning of the aspherical elements ensures flatness of the image plane for edge-to-edge sharpness.
The aspherical elements are used as part of the focusing group to minimize performance fluctuations between different focal distances.
Compact, lightweight and stylish design
- The lens weighs just 180g.
- The metal exterior, modeled after the design of XF35mmF2 R WR, gives a sense of premium quality and robustness.
- The compact and stylish form factor almost completely eliminates mechanical vignetting* when using the optical viewfinder on the FUJIFILM X-Pro2 and X-Pro1 cameras.
- The aperture ring and focus ring have just the right amount of clicking and torque for great operability.
Fast and silent autofocus
The inner-focus AF system** uses a stepping motor to drive lightweight focusing elements for silent and fast autofocus. When combined with the phase detection AF system of FUJIFILM X-Pro2 and X-T2, the lens can focus in an astonishing 0.05 seconds***.
Weather and dust resistant
The lens barrel is sealed to make it weather and dust resistant, and capable of operating at temperatures as low as -10°C.
When mounted on the weather- and dust-resistant mirrorless digital cameras FUJIFILM X-Pro2, X-T1, and X-T2, you can shoot in light rain or a dusty environment with peace of mind.
Optional accessories

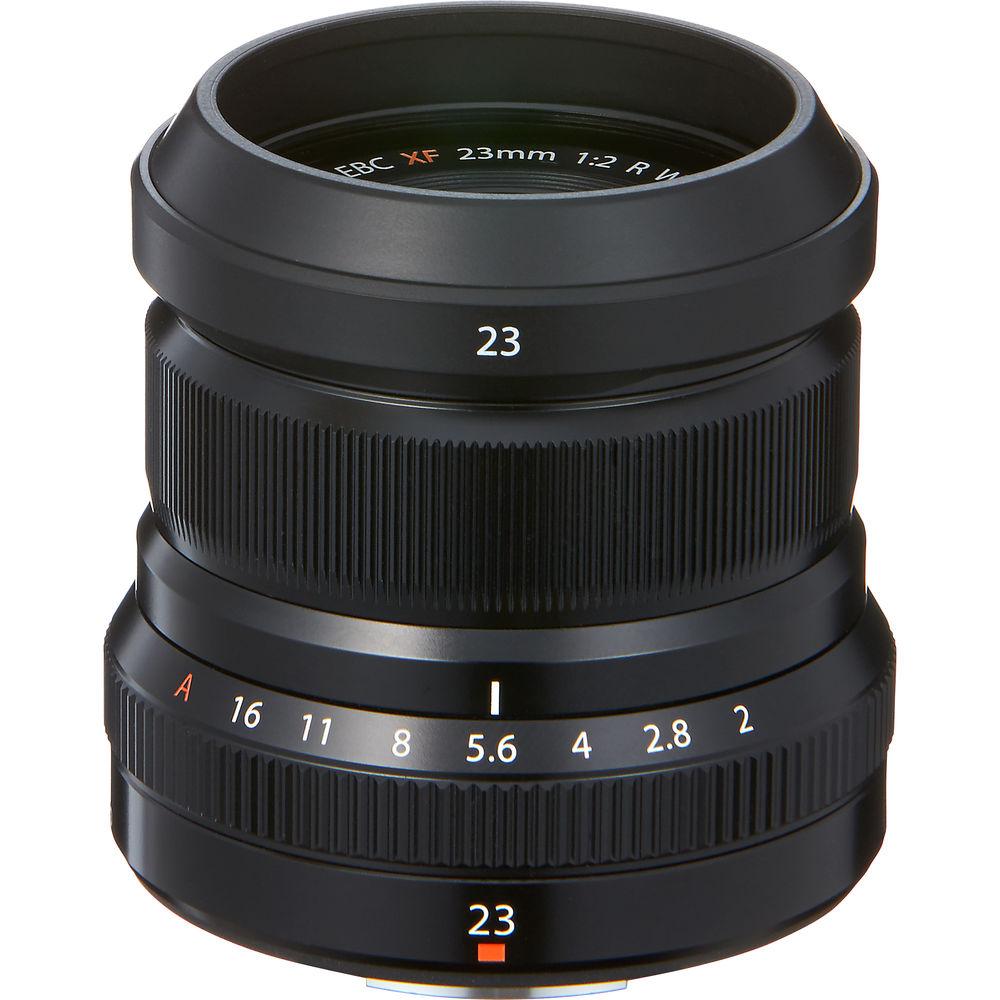

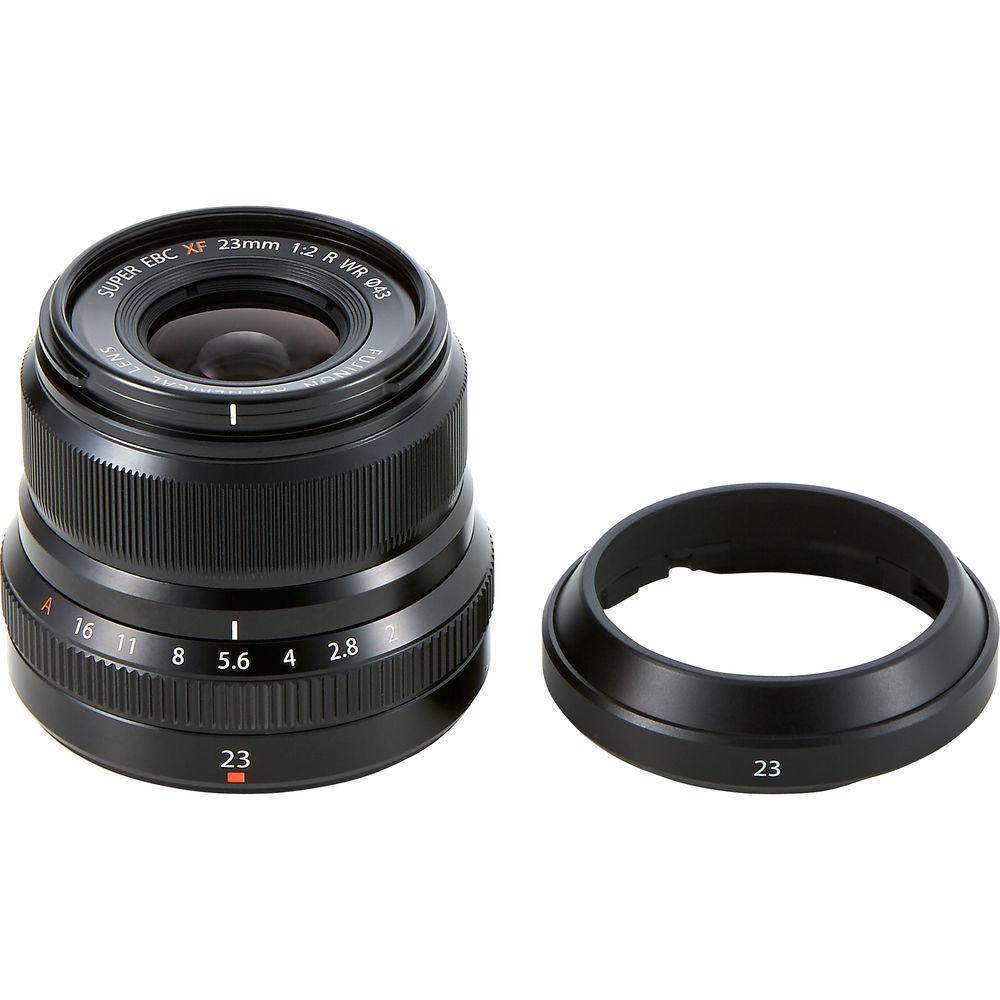

This lens can be used with the vented metal hood "LH-XF35-2," which is also compatible with the XF35mmF2 R WR. Coinciding with the launch of the XF23mmF2 R WR, a silver version of the lens hood is will also be released, allowing users to choose an optional hood that matches the color of the lens.
Specifications
Focal Length
23mm
Comparable 35mm Focal Length: 35mm
Aperture
Max.: f/2
Min.: f/16
Camera Mount Type
Fujifilm X-Mount
Format Compatibility
APS-C
Angle of View
63.4 degrees
Minimum Focus Distance
8.66" (22cm)
Magnification
0.13x
Elements/Groups
10/6
Diaphragm Blades
9, Rounded
Image Stabilization
No
Autofocus
Yes
Filter Thread
Front: 43mm
Dimensions (DxL)
Approx. 2.36 x 2.04" (60 x 51.9mm)
Weight
6.35 oz (180g)
