Features:

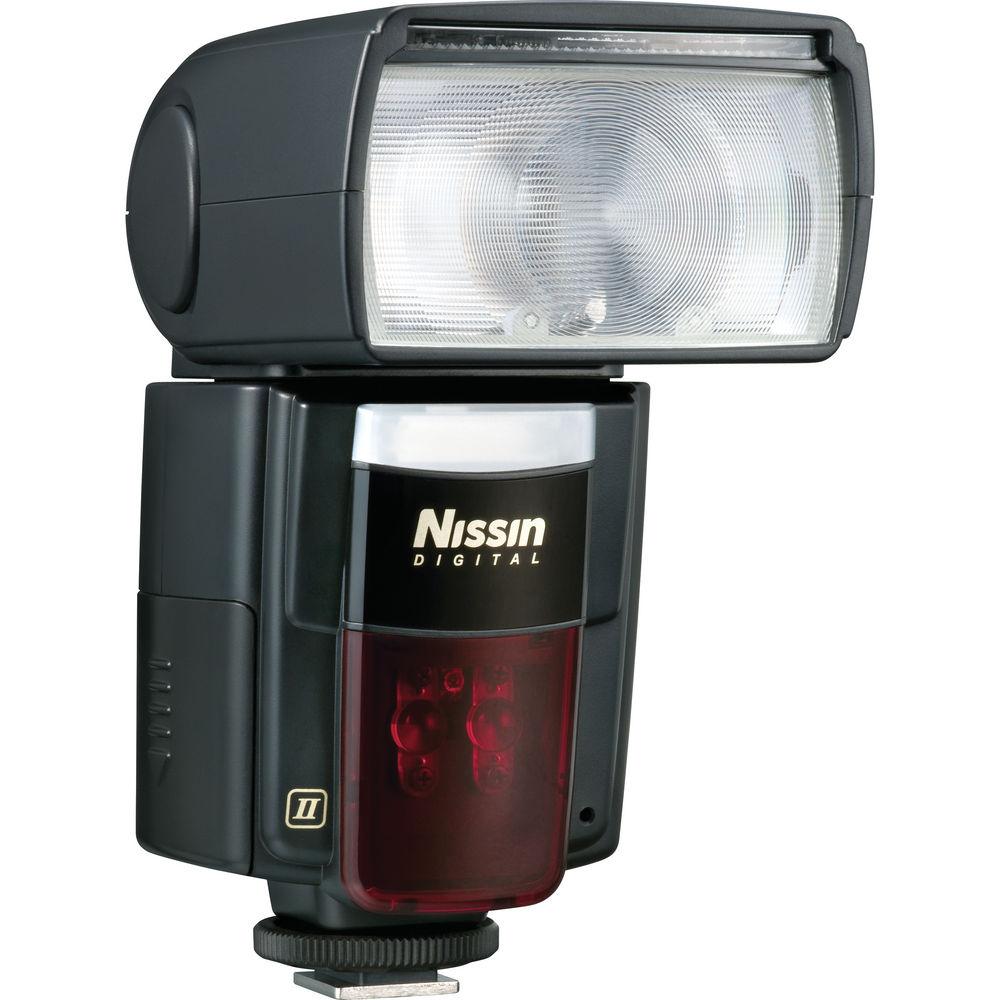

The NISSIN Digital Di866 MARK II for Canon DSLR cameras has several new features including: a new sturdy metal foot, Whisper Quiet Zoom Head, Expanded sub-flash range and an improved wireless sensor.
Color and Auto Rotate Display
The Color Display will automatically follow the camera from the horizontal to vertical positions. The six icon interface gives the user easy operation by representing the six different menu options - Auto, TTL, Manual/Av, Multi, Wireless TTL (Master/Remote) and Custom Setting. Various Functions - TTL, Manual/Av, Multi Flash.
E-TTL
Supports Canon E-TTL and E-TTL II. Manual: Flash power can be adjusted manually at 22 levels, from full power to 1/128 power. Av priority: The flash light can be automatically controlled by the built in photo sensor. The F. Stop can be set from F1.4~F16 and the flash distance at the F-stop set on the flash and camera is shown in the display. Multi Flash: The power ratio can be set from 1/8 to 1/128.
Wireless Solutions for multiple flash situations
The Di866 Mark II Wireless TTL system supports the Canon wireless system and can be used as either a Master or a Remote flash. The M and Av modes offer two optical slave functions. SD slave supports digital pre-flash systems. SF slave supports a traditional flash system. Sub-Flash: The Di866 Mark II provides an extra small flash below the main flash. This small flash gives a fill-in light while bouncing the main flash. It is adjustable from 1/1 - 1/128 power.
The Whisper Quiet Zoom head auto zoom covers a 24-105mm focal range.
Light diffusing panel covers wide 18mm (35mm format), included is a built in bounce card. Rear curtain sync and High speed shutter: In Rear curtain sync, the flash fires just before the rear curtain is closed. The Di 866 Mark II also supports High Speed Synchronization for shutter speeds above the normal sync speed. Flash head tilts up to 90°and rotates horizontally 90°to the right and 180°to the left.
Specifications:
| Compatibility |
Canon digital SLR cameras and Powershot hotshoe cameras |
| Power Source |
Battery magazie: 4 x LR6, (Lithium, NiMH and Oxiride are usable)
Power Pack: Nissin Power Pack Pro 300 (NiMH exclusive battery cluster) |
| Recycling time |
3.5 sec. by Battery Magazine with 4 x NiMH
0.5 sec. by Nissin Power Pack Pro 300 |
| Number of flashes |
150 full power flashes per set of NiMH batteries
300 full power flashes by Nissin Power Pack Pro 300 |
| Camera Synch. |
TTL hotshoe (on camera flash)
PC cord service connector (off camera flash)
Wireless TTL and Slave synchronization (off camera flash) |
| Power zoom |
24 -105mm |
| Manual motor zoom |
Yes |
| Manual power ratio |
8 levels from 1/1 through 1/128 |
| TTL flash power compensation |
±3.0Ev |
| Auto shut off energy saving |
Yes |
| Wide angle diffuser |
Built-in |
| Catch-light reflector |
Built-in |
| Fast recycle |
3.5 sec. |
| Warranty |
Nissin warranty |
