Description

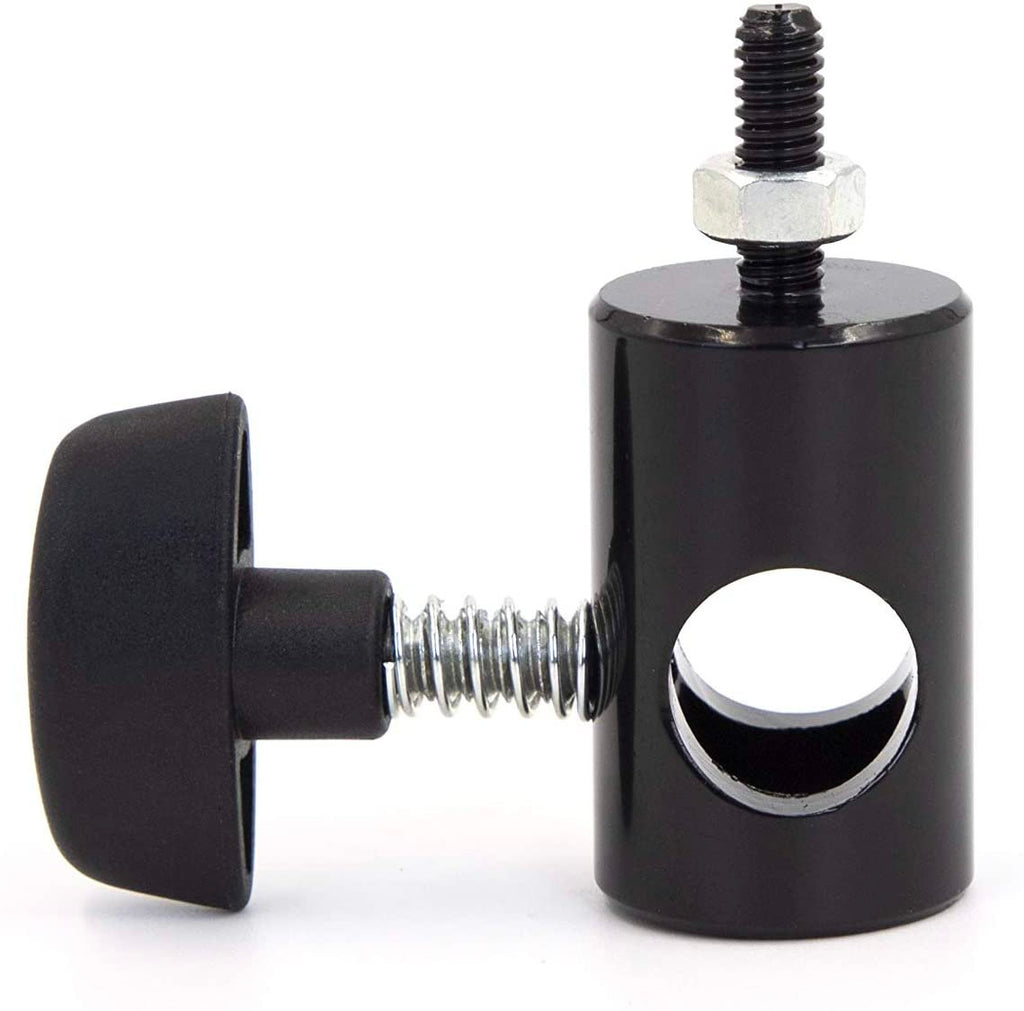

Quickly adapts a 5/8" baby stud to a 1/4"-20 threaded male post.
This receiver slides over a 5/8" stud and locks into place with a twist of the knob. It can be mounted in a straight up-and-down orientaiton, or use the holes on the side to mount it at a 90-degree angle.
Once mounted, a 1/4"-20 threaded male post at the top of the receiver can be used to connect a variety of accessories. A jam nut on the post is helpful for locking the accessory into place.
By connecting the receiver to an accessory ahead of time you can quickly mount it to a light stand, boom, arm, or other grip item.
Specifications:
Top mount: 1/4"-20 male post
Bottom mount: 5/8" receiver
Dimensions: 2 5/16" high x 2 3/8 wide (with knob unscrewed to widest opening) | 58.7 mm x 60.3 mm
Post height: 11/16" | 17.5 mm
Stud opening diameters: 5/8" | 15.9 mm (applies to both openings)
