A 190 Wh lithium-ion battery & charger kit that is compatible with V-Mount & D-Tap devices.

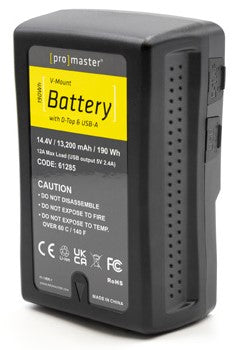

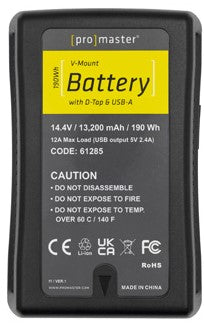

The ProMaster 61285 V-Mount Battery Kit is a high capacity (14.4V / 13,200 mAh / 190 Wh) li-ion battery with D-Tap and USB-A ports. It supports a continuous draw up to 12A at a nominal 14.4 V. This kit includes a D-Tap charger for convenience and value.

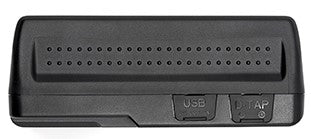

The battery sports an industry standard D-Tap port which can be used for charging the battery, as well as for powering other devices using a compatible D-Tap cable. In addition to the D-Tap port, this battery has a USB-A (5V 2.4A) output port for charging or powering compatible devices.

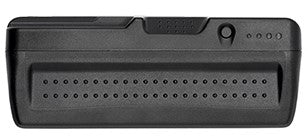

An on-board 4-LED power gauge displays the approximate, remaining battery capacity. It is easily activated with the push of a button.
Over-charge, over-discharge, over-current, and over-temperature protection circuitry is built-into this battery for safety.
Charging this battery using the included D-Tap charger from depleted to 100% takes about 8 1/2 hours.
Key Features:
- 13,200 mAh / 190 Wh capacity
- Supports up to 12A of continuous draw
- Onboard 4-LED power gauge indicate remaining battery capacity
- 2-Pin D-Tap port for charging and power
- USB-A port for charging other devices
- Kit includes D-Tap charger
- Built-in protection circuitry
Battery Specifications:
- Nominal Voltage: 14.4 V
- Capacity: 13,200 mAh / 190 Wh
- Maximum Load: 12 A continuous draw (via main contacts or D-Tap)
- Cut-off Discharge Voltage: 10.5 V
- Charging Voltage: 16.8 V
- Charging Current: 2.64 A standard charging / 4.0 A quick charging
- Maximum Charging Current: 6 A
- USB-A Port Output: 5 V / 2.4 A
- USB Cut-off Discharge Current Protection: 2.5 - 3.2 A
- D-Tap Maximum Discharge Current: 14.9 A (16.8 V) - 23.8 A (10.5 V)
- D-Tap Charging Voltage: 16.8 V
- D-Tap Maximum Charging Current: 6 A
- Dimensions: 5 7/8" x 3 3/4" x 2 1/4" | 150 mm x 95 mm x 57 mm
- Weight: 2 lbs 5 1/2 oz / 1,063 g

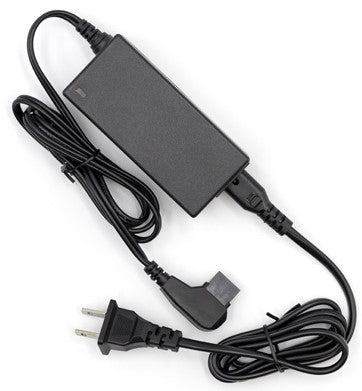

Charger Specifications:
- Input: 100 - 240 V AC 50/60 Hz
- Output charging voltage: 16.8 V DC
- Output charging current: 2.0 A
