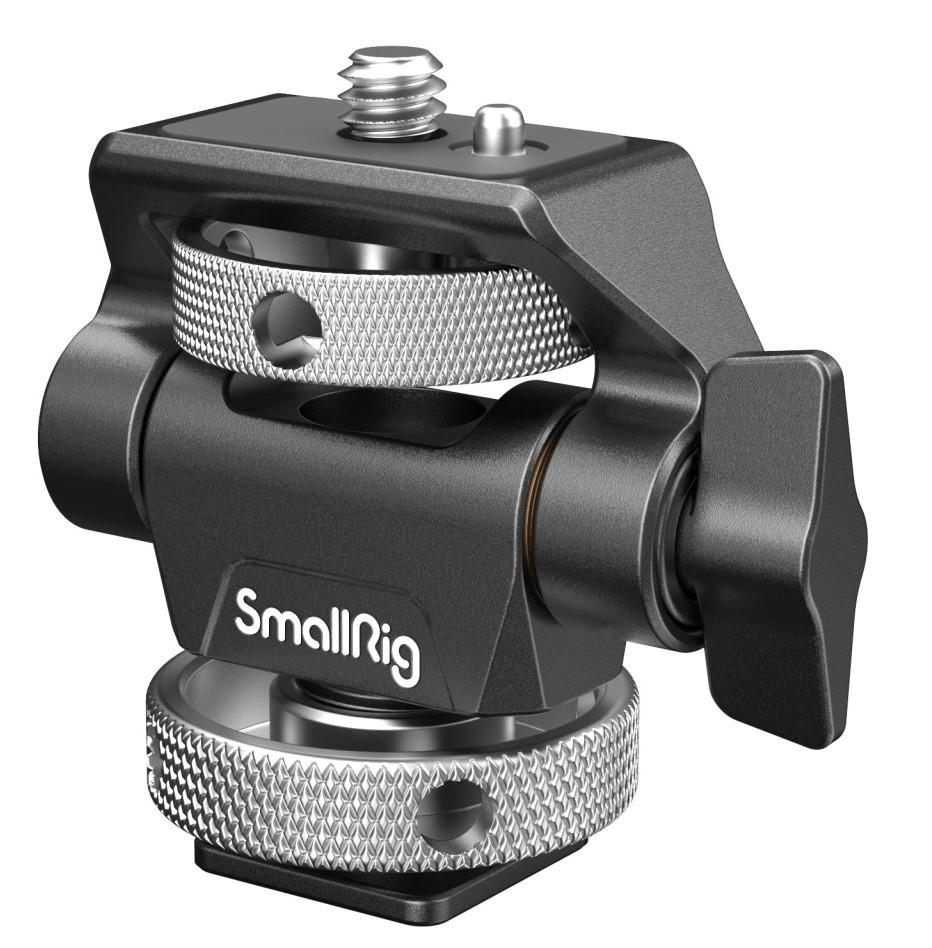

SmallRig Swivel and Tilt Adjustable Monitor Mount with Cold Shoe Mount

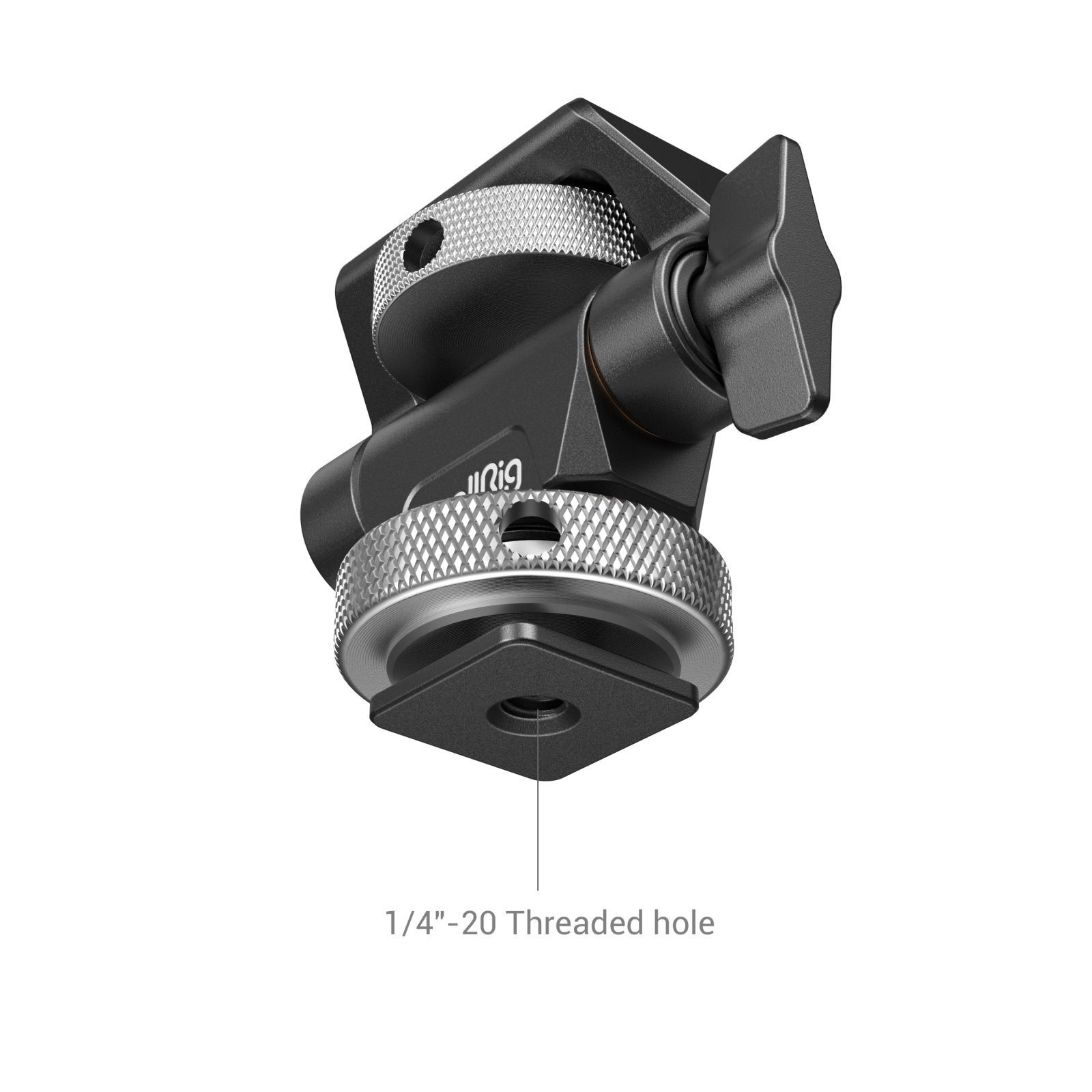

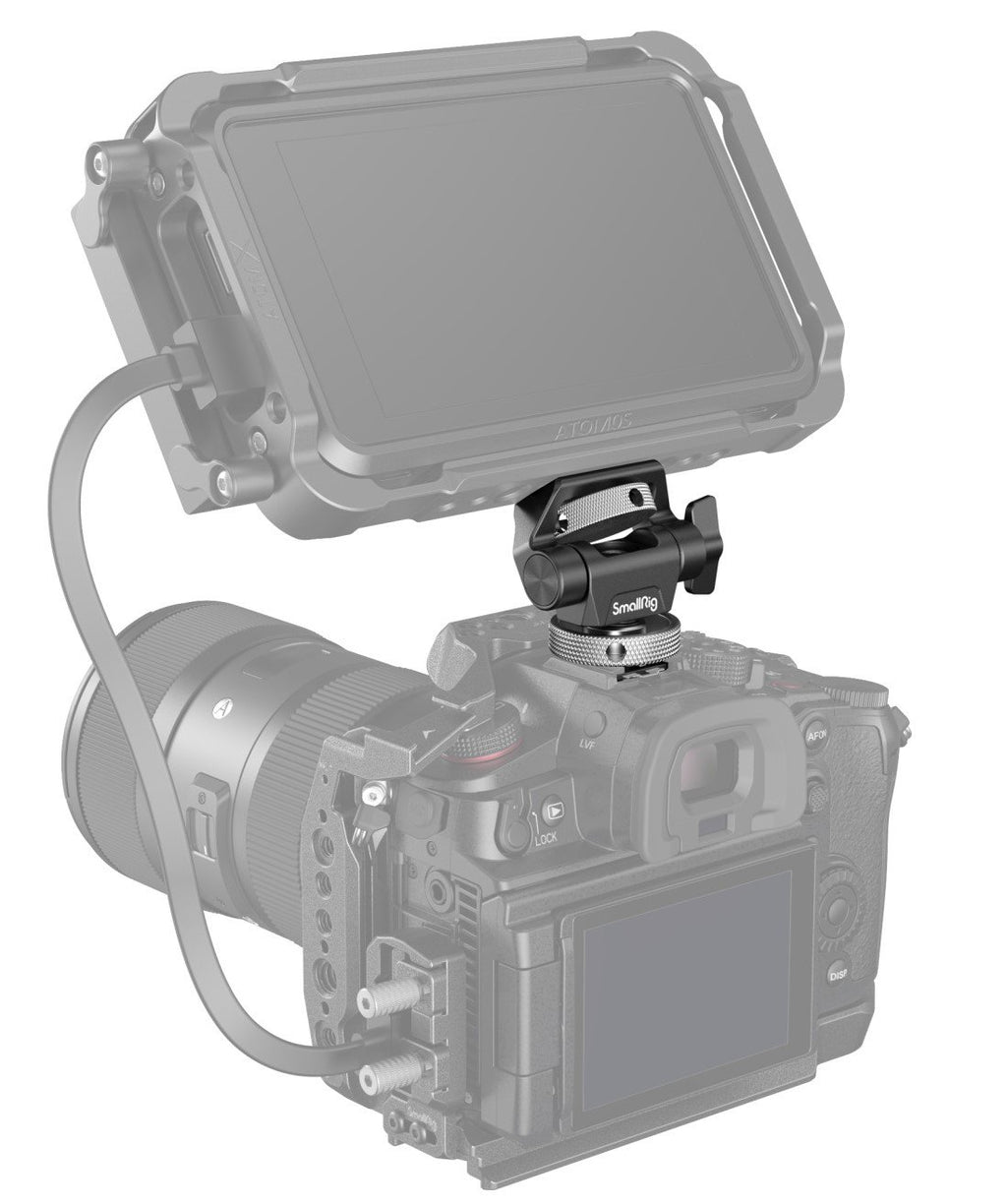

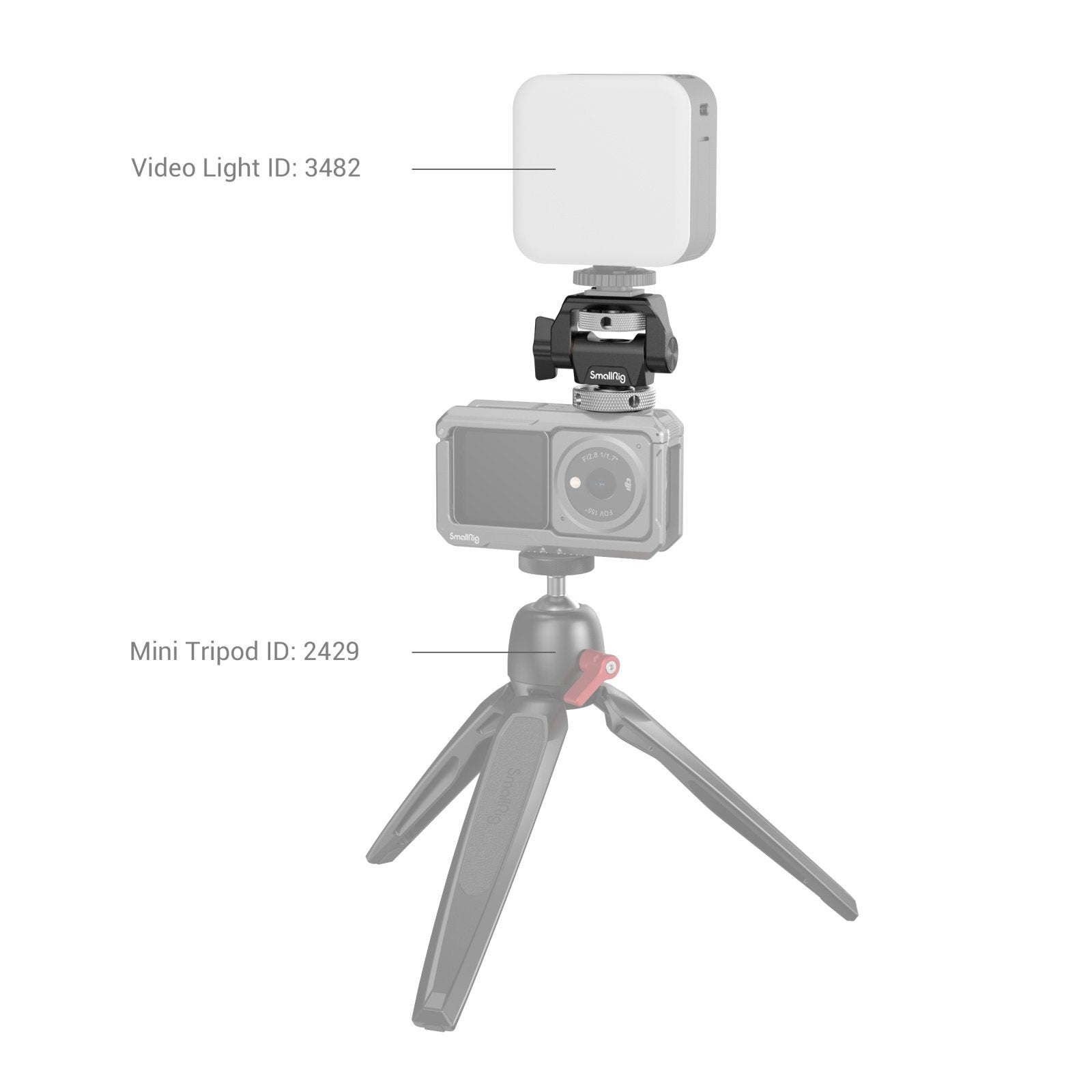

SmallRig Swivel and Tilt Adjustable Monitor Mount with Cold Shoe Mount 2905 is designed to hold your monitor for easy monitoring. It comes with a bottom cold shoe for camera hot shoe, cage or handle and a top 1/4"-20 screw for monitor, microphone, light, etc. The mount can tilt 180° and and swivel 360°. Its tilt axis is quickly tightened via a knob to suit different weight and features tested durability, with tilt load capacity decreased by no more than 20% after 10,000 tilts, while its pan axis is 360° adjustable via an Allen wrench. Bouncy locating pins on the top help secure Ninja V/ V+; and 1/4"-20 threaded holes at the bottom allow attaching Magic Arm 2070, etc. Both thumbscrews have holes for Allen wrench to facilitate assembly and disassembly.
Designer: Tracy Joy

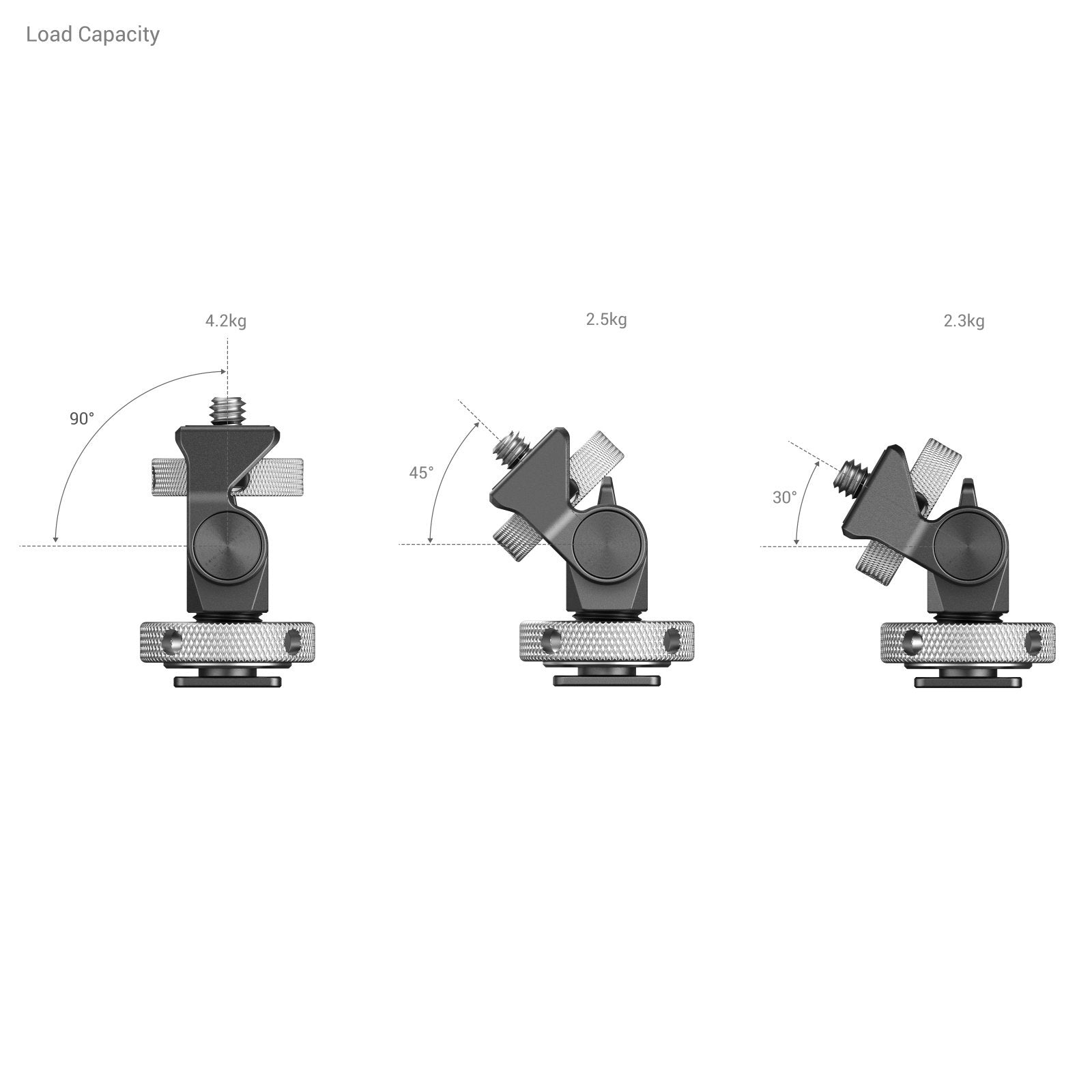

Note: 90° load capacity: ＜4.2kg; 45° tilt load capacity: ＜2.5kg; 30° tilt load capacity: ＜2.3kg

Compatibility:

• 5” and 7” monitor

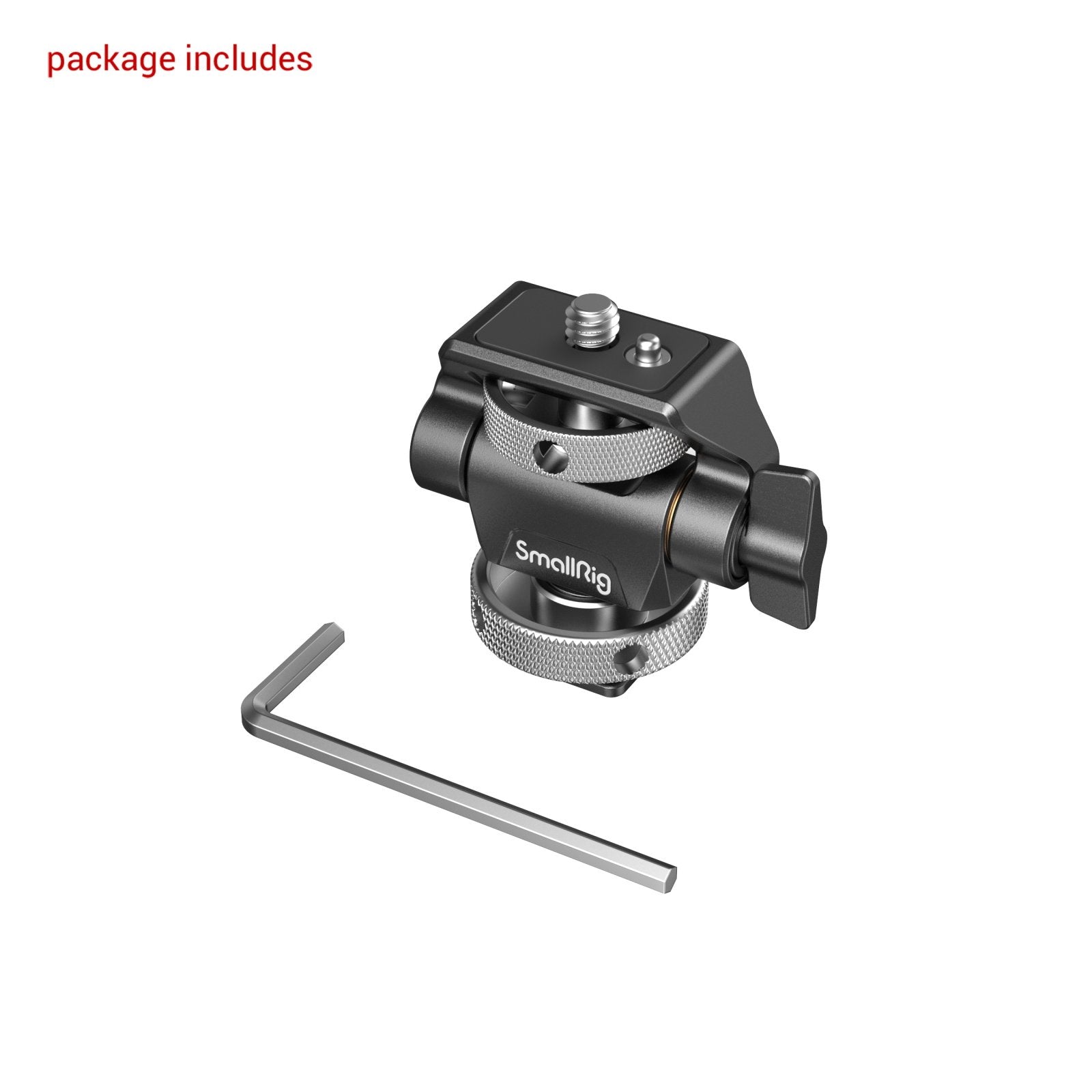

In the Box:

• 1 x Monitor Mount
• 1 x Allen Wrench



• Product Parameters

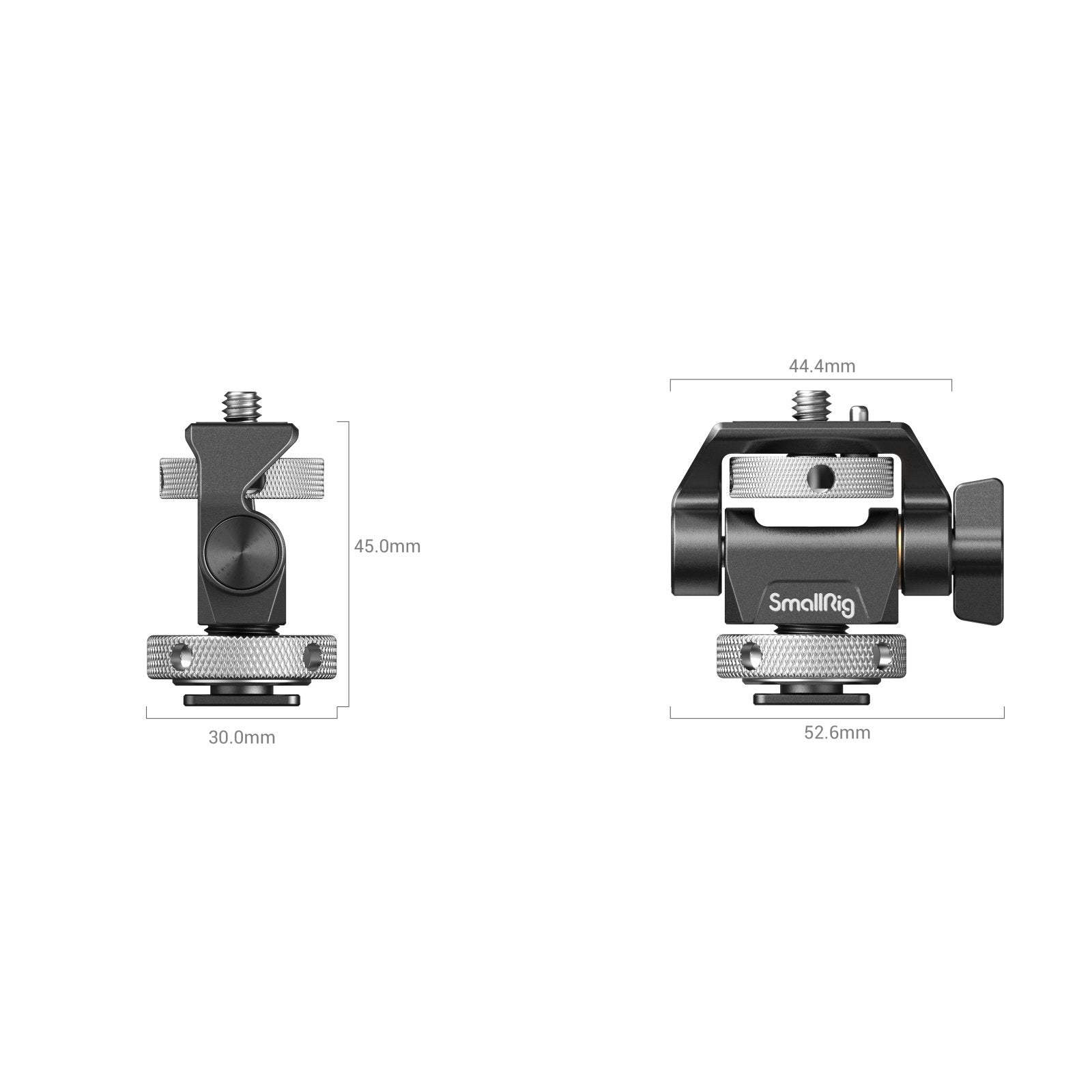

• Product Dimensions: 45 x 52.6 x 30mm
• Package Dimensions: 78 x 67 x 42mm
• Net Weight: 78g±5g
• Package Weight: 98g±5g
• Material(s): Aluminum Alloy, Stainless Steel
