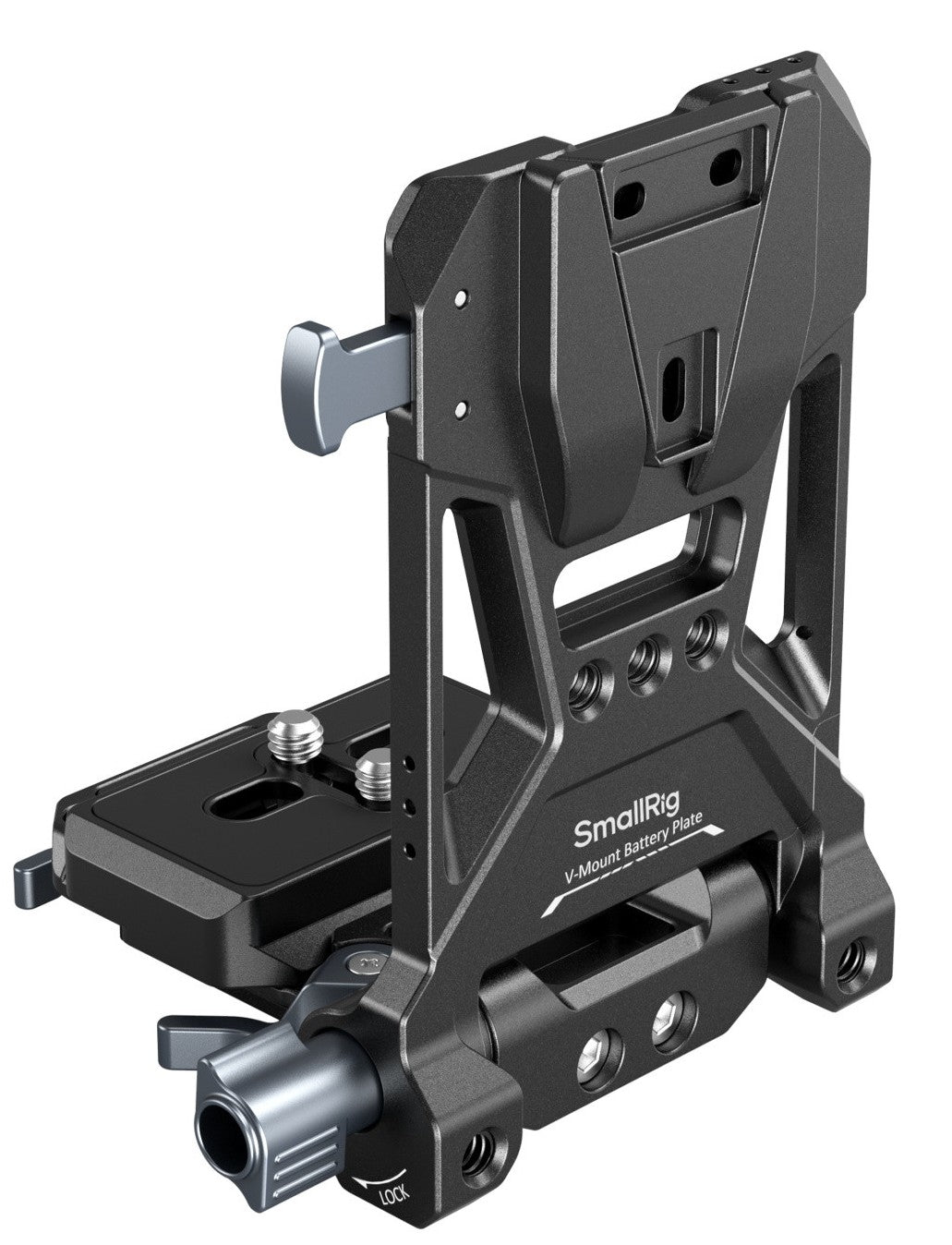

SmallRig V-Mount Battery Mount Plate 4505B is a compact, lightweight, convenient, all-in-one mounting solution for V-mount batteries. The baseplate can be stretched to fit mirrorless / DSLR cameras of various sizes. Tool-free installation and adjustment make the process quick and time-saving. The built-in Arca-type mount plate supports any SmallRig cages with an Arca-Swiss plate. The built-in 1/4"-20 threaded holes provide more power supply solutions by attaching a Mounting Clamp for Portable Power Banks BUB2336. The built-in 1/4"-20 & 3/8”-16 holes at the bottom allow attaching other quick-release plates. The rotatable structure facilitates screen usage and adopts damping to prevent your device from falling. The folding design of the V-Mount plate increases compactness and portability. The included aluminum alloy V-Mount Backplate can replace the plastic V-Mount Plate on the back of other V-mount batteries.
Note: Load-bearing capacity: 5kg / 11.0lbWork With
- Mirrorless / DSLR cameras less than 111mm thick, for example:
- Sony Alpha 7 V /Alpha 7R V / Alpha 7 IV / Alpha 7S III / Alpha 7C / FX3 / FX30
- Canon EOS R5C / R5 / R6 / R6 Mark II / R7 / R10 / R / RP
- Panasonic LUMIX S1H / S1R / S1 / S5 / S5 II / GH6 / GH5

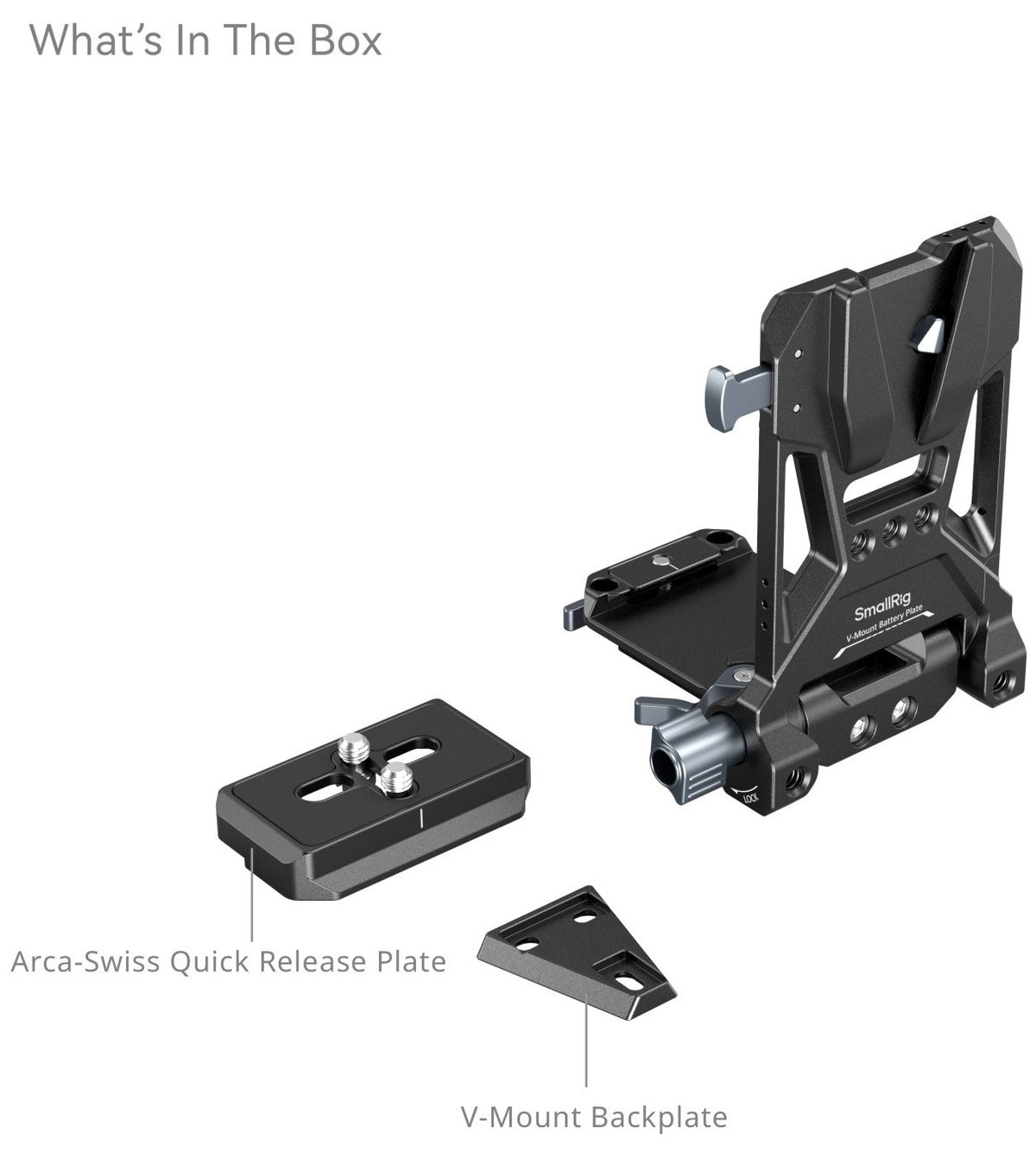

Packing List
- V-Mount Battery Plate x 1
- V-Mount Backplate x 1
- Arca-Swiss Quick Release Plate x 1
Technical Data
- Product Dimensions: 113.5 × 91.5 × 30.0mm / 4.5 × 3.6 × 1.2in
- Package Dimensions: 137.0 × 104.0 × 51.5mm / 5.4 × 4.1 × 2.0in
- Product Weight: 234.8 ± 5.0g / 8.3 ± 0.2oz
- Package Weight: 306.3 ± 5.0g / 10.8 ± 0.2oz
- Material(s): Aluminum Alloy, Stainless Steel
